5652-08-08-08-08-4
1/2" FP x 1/2" FP x 1/2" FP x 1/2" FP - Female Pipe Cross - Steel
Details
Details
• Female Pipe Cross
• FP x FP x FP x FP
• 1st) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 3rd) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 4th) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• FP x FP x FP x FP
• 1st) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 3rd) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 4th) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2080-8-8SEaton-Weatherhead Ref: C3959x8
Parker Ref: 1/2 KMMOO-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Cross1 - Thread Type: Female Pipe1 - Size: -08 (1/2")1 - Thread: 1/2 - 14
2 - Thread Type: Female Pipe2 - Size: -08 (1/2")2 - Thread: 1/2 - 143 - Thread Type: Female Pipe3 - Size: -08 (1/2")3 - Thread: 1/2 - 144 - Thread Type: Female Pipe4 - Size: -08 (1/2")

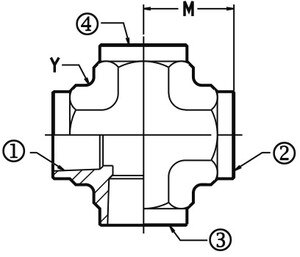

4 - Thread: 1/2 - 14M - Leg Length: 1.23Y - Flats: 1 1/16Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
