56C-04

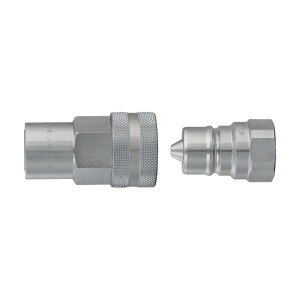

1/4" Coupler - 1/4" FP - ISO 7241-1A - 5600 Int - Steel

$21.72
Sold as: Each
Ordered as: 56C-04
view spec page

Crossover Part Numbers

Dixon Ref.: 2KF2Eaton Ref.: 5601-4-4S
Faster Ref.: ANV 14 NPT FParker Ref.: 6601-4-4

Specs

Fluid Product: ConnectionProduct Type: Quick CouplersMedia: HydraulicMaterial: SteelOrientation: General Purpose1 - Size: 1/4
2 - Thread Type: Female Pipe2 - Size: 1/42 - Thread: 1/4 - 18A - Length: 1.85B - Diameter: 1.02D - Wrench Flats: 0.75
E - Connected / Exposed: 2.55Working PSI: 5,075Burst PSI: 20,300Working BAR: 350Burst BAR: 1,400
