61-10
5/8" CP - Compression Nut - Compression - Brass
Details
Details

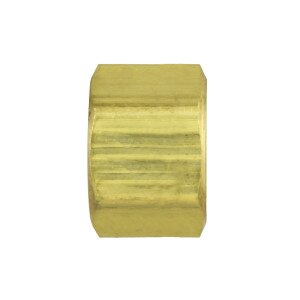

• Compression Nut
• CP
• 1st) 5/8" Compression (13/16 - 18 Thread)
• Use With Compression Sleeve (#60-10)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 150 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• CP
• 1st) 5/8" Compression (13/16 - 18 Thread)
• Use With Compression Sleeve (#60-10)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 150 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Eaton-Weatherhead: 61x10
Parker: 61C-10
Specs
Fluid Product: ConnectionProduct Type: Compression FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: Straight
Tube O.D.: 5/8"1 - Thread Type: Size1 - Size: -10 (5/8")1 - Thread: 13/16 - 18Working PSI: 150
Burst PSI: 600Working BAR: 10Burst BAR: 41
