61SF-12

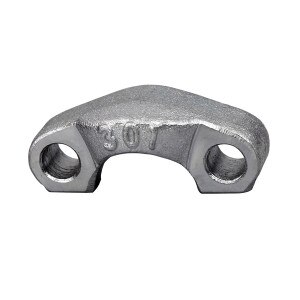

Split Flange Half - Code 61 - Steel
Details
Details
• Code 61 - Split Flange Half
• FH61 (Use With Code 61 Split Flange Head - Size-12)
• 1st) 3/4" Code 61 Split Flange Head
• Forged Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Specifications
• FH61 (Use With Code 61 Split Flange Head - Size-12)
• 1st) 3/4" Code 61 Split Flange Head
• Forged Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Specifications
Crossover Part Numbers
Eaton-Weatherhead Ref: 12x251
Parker Ref: 12FCS1
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Accessory
Tube O.D.: 3/4"1 - Size: -12 (3/4")A: 0.98B: 2.56C: 1.88
E: 0.56F: 1.53G: 1.27H: 0.25J: 0.41
