62-02-02

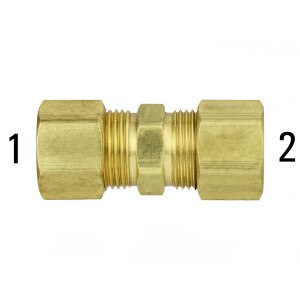

1/8" CP x 1/8" CP - Union - Compression - Brass
Details
Details
• Compression Union
• CP x CP
• 1st) 1/8" Compression (5/16 - 24 Thread)
• 2nd) 1/8" Compression (5/16 - 24 Thread)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 400 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• CP x CP
• 1st) 1/8" Compression (5/16 - 24 Thread)
• 2nd) 1/8" Compression (5/16 - 24 Thread)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 400 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Eaton-Weatherhead: 162x2
Parker: 62C-2
Specs
Fluid Product: ConnectionProduct Type: Compression FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: StraightTube O.D.: 1/8"
1 - Thread Type: Compression1 - Size: -02 (1/8")1 - Thread: 5/16 - 242 - Thread Type: Compression2 - Size: -02 (1/8")2 - Thread: 5/16 - 24
Working PSI: 400Burst PSI: 1,600Working BAR: 28Burst BAR: 110
