62SF-24

Sold as: Each
Ordered as: 62SF-24
$34.74

Details

Details

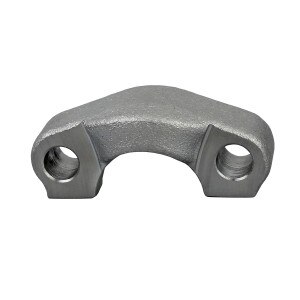

• Code 62 - Split Flange Half
• FH61 (Use With Code 62 Split Flange Head - Size-24)
• 1st) 1-1/2" Code 62 Split Flange Head
• Forged Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Specifications

Crossover Part Numbers

Eaton-Weatherhead Ref: 24x262
Parker Ref: 24FCS2

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Accessory
Tube O.D.: 1 1/2"1 - Size: -24 (1 1/2")A: 1.83B: 4.44C: 3.13
E: 1.19F: 2.53G: 2.03H: 0.48J: 0.66
