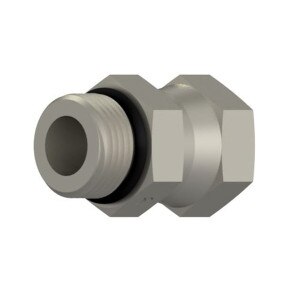

6402-20-20
1-1/4" MB x 1-1/4" FJX - Steel
Details
Details
• Male O-Ring Boss x Female JIC Swivel
• MB x FJX
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• MB x FJX
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2266-20-20SEaton-Weatherhead Ref: C5216x20
Parker Ref: 20 F65OX-S
Specs

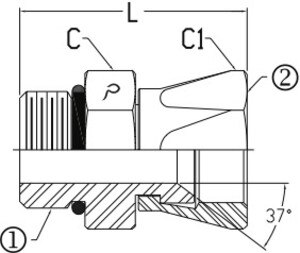

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1 1/4"1 - Thread Type: Male ORB
1 - Size: -20 (1 1/4")1 - Thread: 1 5/8 - 122 - Thread Type: Female JIC Swivel2 - Size: -20 (1 1/4")2 - Thread: 1 5/8 - 12C - Body Hex: 1 7/8C1 - Nut Hex: 2"
L - Length: 2.55Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
