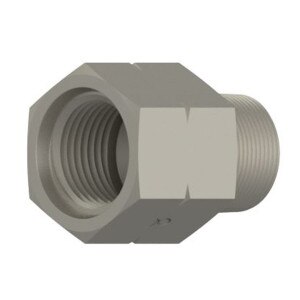

6404-16-16
1" FB x 1" MP - Steel
Details
Details
• Female O-Ring Boss x Male Pipe Adapter
• FB x MP
• 1st) 1" Female O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
• FB x MP
• 1st) 1" Female O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2246-16-16SEaton-Weatherhead Ref: C3239x16
Parker Ref: 1-16 FHG5-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1"

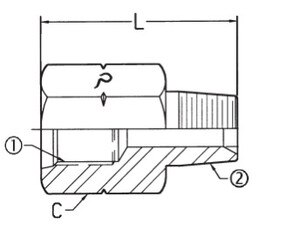

1 - Thread Type: Female ORB1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Male Pipe2 - Size: -16 (1")2 - Thread: 1 - 11 1/2
C - Hex: 1 7/8L - Length: 2.16Working PSI: 3,500Burst PSI: 14,000Working BAR: 241Burst BAR: 965
