6407-16-16

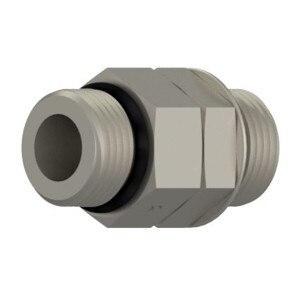

1" MB x 1" MB (Adjustable) - Male ORB Union - Steel
Details
Details
• Male O-Ring Boss Union
• MB x MB
• 1st) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MB x MB
• 1st) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2220-16-16SEaton-Weatherhead Ref: C5314x16
Parker Ref: 16 F5OHAO-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male ORB

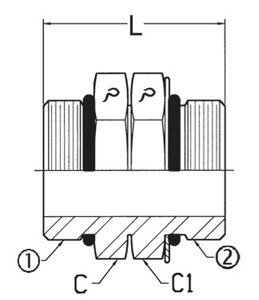

1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Male ORB2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Body Hex: 1 1/2
C1 - Nut Hex: 1 1/2L - Length: 2.36Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
