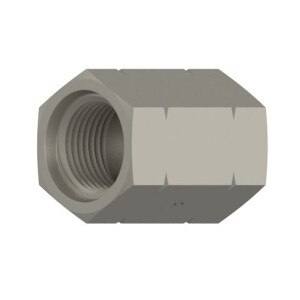

6425-08-08
FB x FB - Female ORB Coupling - Steel
Details
Details

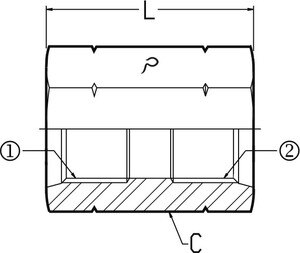

• Female O-Ring Boss Union
• FB x FB
• 1st) 1/2" Female O-Ring Boss (3/4 - 16 Thread)
• 2nd) 1/2" Female O-Ring Boss (3/4 - 16 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• FB x FB
• 1st) 1/2" Female O-Ring Boss (3/4 - 16 Thread)
• 2nd) 1/2" Female O-Ring Boss (3/4 - 16 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
