65-03-03

Sold as: Packs of 10
Ordered as: 65-03-03
$112.20

Details

Details

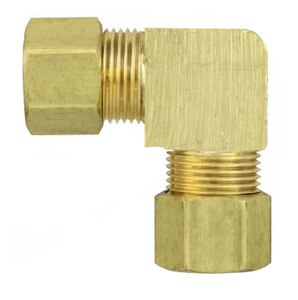

• Compression Union Elbow
• CP x CP 90°
• 1st) 3/16" Compression (3/8 - 24 Thread)
• 2nd) 3/16" Compression (3/8 - 24 Thread)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process

• Working Pressure: 400 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)

Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).

Crossover Part Numbers

Eaton-Weatherhead: 65x3
Parker: 265C-3

Specs

Fluid Product: ConnectionProduct Type: Compression FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: 90° ElbowTube O.D.: 3/16"
1 - Thread Type: Compression1 - Size: -03 (3/16")1 - Thread: 3/8 - 242 - Thread Type: Compression2 - Size: -03 (3/16")2 - Thread: 3/8 - 24
Working PSI: 400Burst PSI: 1,600Working BAR: 28Burst BAR: 110
