6500-12-12-4

Sold as: Each
Ordered as: 6500-12-12-4
$9.90

Details

Details

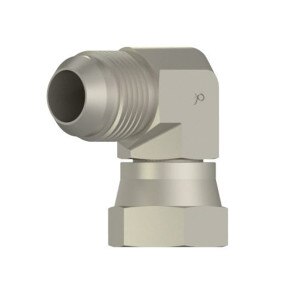

• Swivel Nut Elbow
• MJ x FJX 90°
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070221

• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2071-12-12SEaton-Weatherhead Ref: C5506x12
Parker Ref: 12 C6X-SSAE Ref: 070221

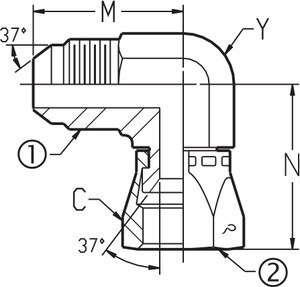

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/4"1 - Thread Type: Male JIC
1 - Size: -12 (3/4")1 - Thread: 1 1/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 12C - Hex: 1 1/4M - Leg Length: 1.66
N - Leg Length: 1.75Y - Flats: 1 1/16Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
