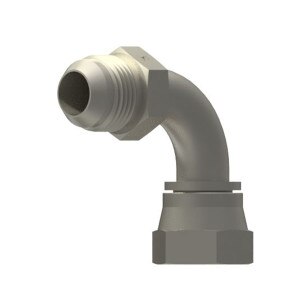

6500BT-06-06
3/8" MJ x 3/8" FJX 90° - Swivel Nut Bent Tube - Steel
Details
Details
• Swivel Nut BENT TUBE Elbow
• MJ x FJX 90° BENT TUBE
• 1st) 3/8" Male 37° JIC Flare (9/16 - 18 Thread))
• 2nd) 3/8" Female JIC Swivel (9/16 - 18 Thread)
• Steel Bent Tube
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MJ x FJX 90° BENT TUBE
• 1st) 3/8" Male 37° JIC Flare (9/16 - 18 Thread))
• 2nd) 3/8" Female JIC Swivel (9/16 - 18 Thread)
• Steel Bent Tube
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF5163-0606S / 500454-6SEaton-Weatherhead Ref: 500454-6-6
Parker Ref: 39T3-6-6
Specs

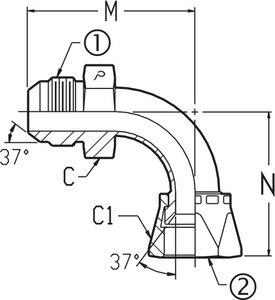

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/8"1 - Thread Type: Male JIC
1 - Size: -06 (3/8")1 - Thread: 9/16 - 182 - Thread Type: Female JIC Swivel2 - Size: -06 (3/8")2 - Thread: 9/16 - 18C - Body Hex: 5/8C1 - Nut Hex: 11/16
M - Leg Length: 1.50N - Leg Length: 1.63Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
