6500BTL-12-12
3/4" MJ x 3/4" FJX 90° - Swivel Nut Bent Tube Long - Steel
Details
Details
• Swivel Nut BENT TUBE Elbow LONG
• MJ x FJX 90° BENT TUBE LONG
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Steel Bent Tube
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MJ x FJX 90° BENT TUBE LONG
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Steel Bent Tube
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF5164-12S / 504095-1212SEaton-Weatherhead Ref: 504095-12-12
Parker Ref: 41T3-12-12
Specs

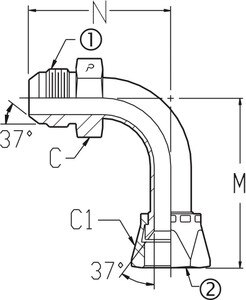

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/4"1 - Thread Type: Male JIC
1 - Size: -12 (3/4")1 - Thread: 1 1/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 12C - Body Hex: 1 1/8C1 - Nut Hex: 1 1/4
M - Leg Length: 2.50N - Leg Length: 4.89Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
