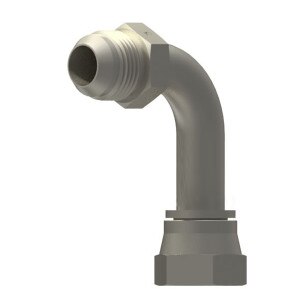

6500BTL-16-16
1" MJ x 1" FJX 90° - Swivel Nut Bent Tube Long - Steel
Details
Details
• Swivel Nut BENT TUBE Elbow LONG
• MJ x FJX 90° BENT TUBE LONG
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• Steel Bent Tube
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
• MJ x FJX 90° BENT TUBE LONG
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• Steel Bent Tube
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF5164-16S / 504095-1616SEaton-Weatherhead Ref: 504095-16-16
Parker Ref: 41T3-16-16
Specs

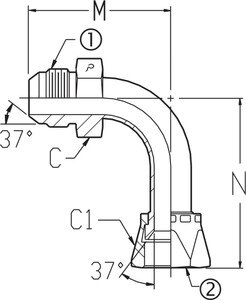

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1"1 - Thread Type: Male JIC
1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Body Hex: 1 3/8C1 - Nut Hex: 1 1/2
M - Leg Length: 2.79N - Leg Length: 5.83Working PSI: 3,500Burst PSI: 14,000Working BAR: 241Burst BAR: 965
