6504-12-12
MJ x FJX - Swivel Nut Connector - Steel
Details
Details

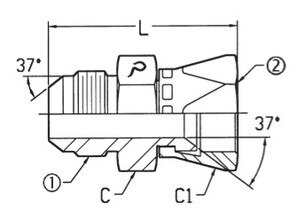

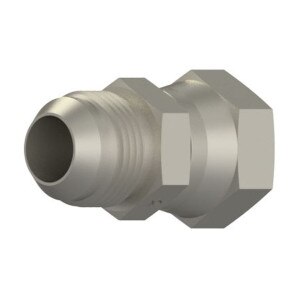

• Swivel Nut Connector
• MJ x FJX
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MJ x FJX
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
