6505-04-05

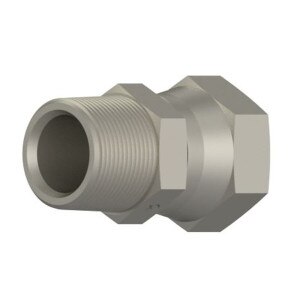

1/4" MP x 5/16" FJX - Swivel Nut Male Adapter - Steel
Details
Details
• Swivel Nut Male Adapter
• MP x FJX
• 1st) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• 2nd) 5/16" Female JIC Swivel (1/2 - 20 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MP x FJX
• 1st) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• 2nd) 5/16" Female JIC Swivel (1/2 - 20 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2018-4-5SEaton-Weatherhead Ref: C9100x5x4
Parker Ref: 5-4 F6X-S

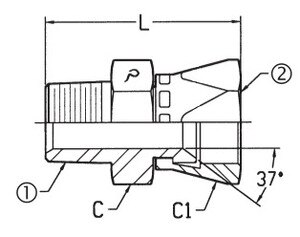

Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 5/16"1 - Thread Type: Male Pipe
1 - Size: -04 (1/4")1 - Thread: 1/4 - 182 - Thread Type: Female JIC Swivel2 - Size: -05 (5/16")2 - Thread: 1/2 - 20C - Body Hex: 9/16C1 - Nut Hex: 5/8
L - Length: 1.57Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
