6506-20-20

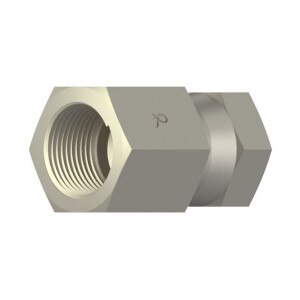

1-1/4" FP x 1-1/4" FJX - Swivel Nut Female Adapter - Steel
Details
Details
• Swivel Nut Female Adapter
• FP x FJX
• 1st) 1-1/4" Female NPTF Pipe (1 1/4 - 11 1/2 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
• FP x FJX
• 1st) 1-1/4" Female NPTF Pipe (1 1/4 - 11 1/2 Thread)
• 2nd) 1-1/4" Female JIC Swivel (1 5/8 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2242-20-20SEaton-Weatherhead Ref: C5256x20
Parker Ref: 20 G6X-S

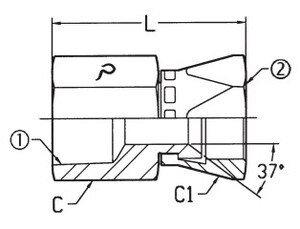

Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1 1/4"1 - Thread Type: Female Pipe
1 - Size: -20 (1 1/4")1 - Thread: 1 1/4 - 11 1/22 - Thread Type: Female JIC Swivel2 - Size: -20 (1 1/4")2 - Thread: 1 5/8 - 12C - Body Hex: 2"C1 - Nut Hex: 2"
L - Length: 2.86Working PSI: 2,500Burst PSI: 10,000Working BAR: 172Burst BAR: 689
