66-06-06

Sold as: Each
Ordered as: 66-06-06
$4.05

Details

Details

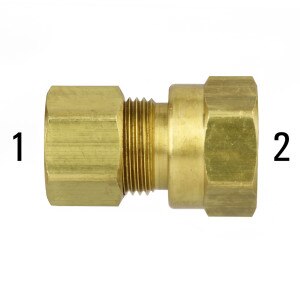

• Compression Female Connector
• CP x FP
• 1st) 3/8" Compression (9/16 - 24 Thread)
• 2nd) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process

• Working Pressure: 200 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)

Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).

Crossover Part Numbers

Eaton-Weatherhead: 66x6x6
Parker: 66C-6-6

Specs

Fluid Product: ConnectionProduct Type: Compression FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: StraightTube O.D.: 3/8"
1 - Thread Type: Compression1 - Size: -06 (3/8")1 - Thread: 9/16 - 242 - Thread Type: Female Pipe2 - Size: -06 (3/8")2 - Thread: 3/8 - 18
Working PSI: 200Burst PSI: 800Working BAR: 14Burst BAR: 55
