6802-08-06-4

Sold as: Each
Ordered as: 6802-08-06-4
$4.68

Details

Details

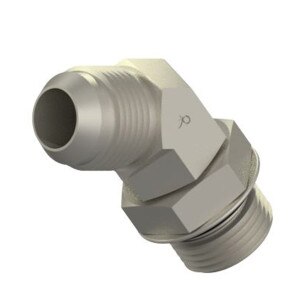

• Straight Thread Elbow
• MJ x MB 45°
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070320

• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2061-6-8SEaton-Weatherhead Ref: C5365x8x6
Parker Ref: 8-6 V5OX-SSAE Ref: 070320

Specs

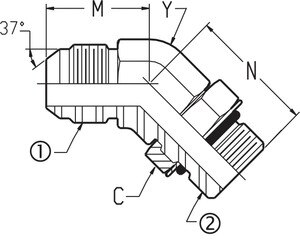

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 1/2"1 - Thread Type: Male JIC
1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Thread Type: Male ORB2 - Size: -06 (3/8")2 - Thread: 9/16 - 18C - Nut Hex: 11/16M - Leg Length: 0.98
N - Leg Length: 1.09Y - Flats: 3/4Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
