6804-04-06-04-4

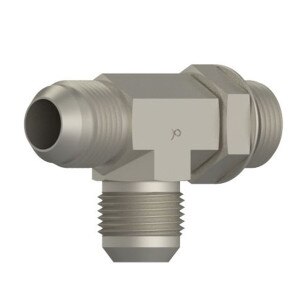

1/4" MJ x 3/8" MB x 1/4" MJ - Straight Thread Run Tee - Steel
Details
Details
• Straight Thread Run Tee
• MJ x MB x MJ
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• 3rd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070428
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MJ x MB x MJ
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• 3rd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070428
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 203005-6-4SEaton-Weatherhead Ref: C5716x4x6x4
Parker Ref: 4-6 R5OX-SSAE Ref: 070428
Specs

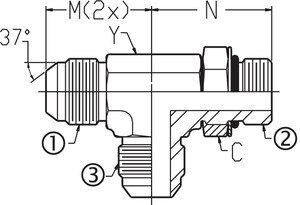

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1/4" x 3/8"1 - Thread Type: Male JIC1 - Size: -04 (1/4")
1 - Thread: 7/16 - 202 - Thread Type: Male ORB2 - Size: -06 (3/8")2 - Thread: 9/16 - 183 - Thread Type: Male JIC3 - Size: -04 (1/4")3 - Thread: 7/16 - 20C - Nut Hex: 11/16
M - Leg Length: 1.05N - Leg Length: 1.25Y - Flats: 9/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
