6806-06-04-4

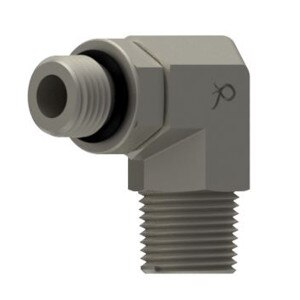

3/8" MB x 1/4" MP 90° - ORB Male Elbow - Steel
Details
Details
• O-Ring Boss Male Elbow
• MB x MP 90°
• 1st) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• 2nd) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MB x MP 90°
• 1st) 3/8" Male O-Ring Boss (9/16 - 18 Thread)
• 2nd) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 206804-4-6S
Eaton-Weatherhead Ref: C3569x6
Specs

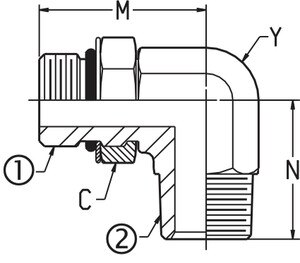

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male ORB1 - Size: -06 (3/8")
1 - Thread: 9/16 - 182 - Thread Type: Male Pipe2 - Size: -04 (1/4")2 - Thread: 1/4 - 18C - Nut Hex: 11/16M - Leg Length: 1.25N - Leg Length: 1.09
Y - Flats: 9/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
