6809-16-16-4

Sold as: Each
Ordered as: 6809-16-16-4
$23.61

Details

Details

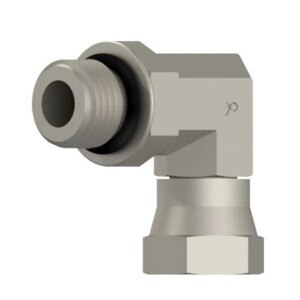

• Swivel Nut Boss Elbow
• MB x FJX 90°
• 1st) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• 2nd) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified

• Working Pressure 3,600 PSI (4:1 Burst)
• Burst Pressure 14,400 PSI

Crossover Part Numbers

Parker Ref: 16 AOEX6-S

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male ORB1 - Size: -16 (1")

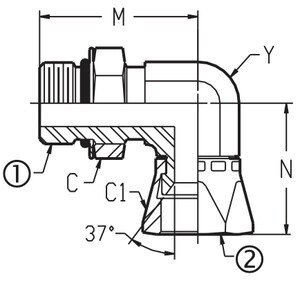

1 - Thread: 1 5/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Nut Hex: 1 1/2C1 - Nut Hex: 1 1/2M - Leg Length: 2.05
N - Leg Length: 2.01Y - Flats: 1 5/16Working PSI: 3,600Burst PSI: 14,400Working BAR: 248Burst BAR: 993
