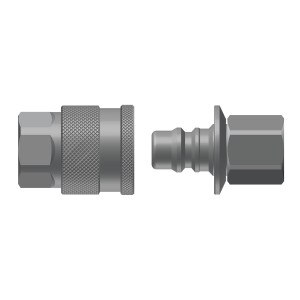

69C-08
Crossover Part Numbers
Dixon Ref.: 4EAF4Eaton Ref.: FD69-1001-08-08
Parker Ref.: WB-501-8FP
Specs
Fluid Product: ConnectionProduct Type: Quick CouplersMedia: HydraulicMaterial: SteelOrientation: High Pressure1 - Size: 1/2

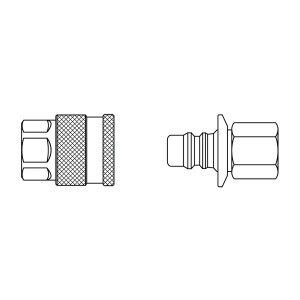

2 - Thread Type: Female Pipe2 - Size: 1/22 - Thread: 1/2 - 14A - Length: 2.20B - Diameter: 1.62D - Wrench Flats: 1.25
Working PSI: 10,000Burst PSI: 40,000Working BAR: 690Burst BAR: 2,759
