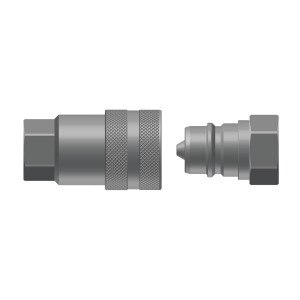

AGC-P-16

1" Coupler - 1" FP - ISO 5675 - Pioneer 4000 Int - Poppet - Steel

$90.98
Sold as: Each
Ordered as: AGC-P-16

Crossover Part Numbers

Dixon Ref.: 8AGF8-PV
Parker Ref.: 4050-6P

Specs

Fluid Product: ConnectionProduct Type: Quick CouplersMedia: HydraulicMaterial: SteelOrientation: General Purpose1 - Size: 1"
2 - Thread Type: Female Pipe2 - Size: 1"2 - Thread: 1 - 11 1/2A - Length: 3.94B - Diameter: 2.20D - Wrench Flats: 1.61
E - Connected / Exposed: 5.20Working PSI: 3,625Burst PSI: 14,500Working BAR: 250Burst BAR: 1,000
