C-2501-03-02

Sold as: Each
Ordered as: C-2501-03-02
$30.69

Details

Details

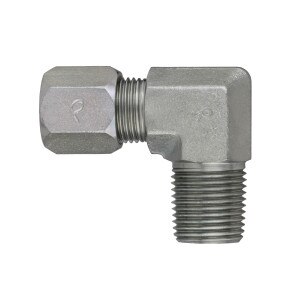

• Flareless Male Elbow
• MF x MP 90°
• 1st) 3/16" Male Flareless (3/8 - 24 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 080202
• Includes Nuts and Ferrules Assembled

• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI

Crossover Part Numbers

Eaton-Weatherhead Ref: 7405x3
Parker Ref: 3 CBU S-S

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/16"1 - Thread Type: Male Flareless
1 - Size: -03 (3/16")1 - Thread: 3/8 - 242 - Thread Type: Male Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 27M - Leg Length: 0.84N - Leg Length: 0.72
Y - Flats: 7/16Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
