C20645-04-06

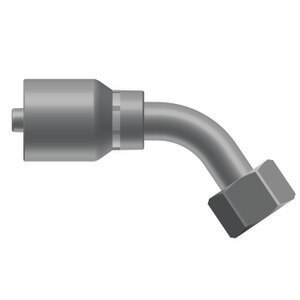

1/4" Braided Crimp x 3/8" FJX 45° - Hydraulic Hose Fitting - Steel
Crossover Part Numbers
Parker Ref.: 13743-6-4 / 1L743-6-4
Specs
Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 1/4"
1 - Thread Type: C2 Hose End1 - Size: -04 (1/4")2 - Thread Type: Female JIC Swivel 45°2 - Size: -06 (3/8")2 - Thread: 9/16 - 18E - Drop Length: 0.59
W - Nut Hex: 11/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
