C20690M-06-06

Sold as: Each
Ordered as: C20690M-06-06
$28.68

Crossover Part Numbers

Parker Ref.: 1L943-6-6

Specs

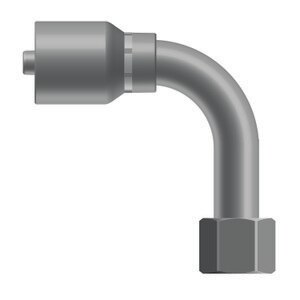

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/8"
1 - Thread Type: C2 Hose End1 - Size: -06 (3/8")2 - Thread Type: Female JIC Swivel 90° - Medium Drop2 - Size: -06 (3/8")2 - Thread: 9/16 - 18E - Drop Length: 1.50
W - Nut Hex: 11/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
