C21145-04-06

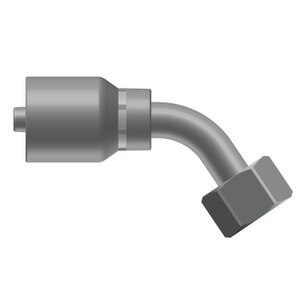

1/4" Braided Crimp x 3/8" FOFX 45° - Hydraulic Hose Fitting - Steel

$27.32
Sold as: Each
Ordered as: C21145-04-06
view spec page

Crossover Part Numbers

Parker Ref.: 1J743-6-4

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 1/4"
1 - Thread Type: C2 Hose End1 - Size: -04 (1/4")2 - Thread Type: Female OFS Swivel 45°2 - Size: -06 (3/8")2 - Thread: 11/16 - 16E - Drop Length: 0.48
W - Nut Hex: 13/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
