C46245-12-12

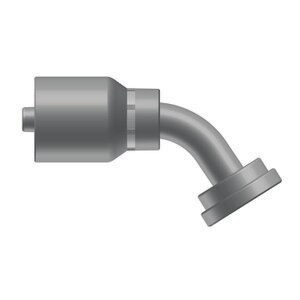

3/4" 4-Spiral Wire Crimp x 3/4" 62FH 45° - Hydraulic Hose Fitting - Steel

$84.35
Sold as: Each
Ordered as: C46245-12-12
view spec page

Crossover Part Numbers

Parker Ref.: 16F71-12-12

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/4"
1 - Thread Type: C4 Hose End1 - Size: -12 (3/4")2 - Thread Type: Code 62 Flange Head 45°2 - Size: -12 (3/4")2 - Thread: 3/4"E - Drop Length: 1.27
Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
