C49200-12-25

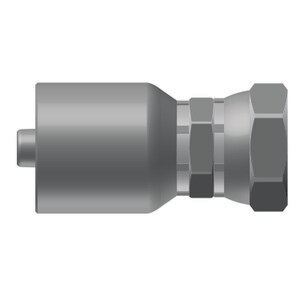

3/4" 4-Spiral Wire Crimp x M36x2.0 (25mm) MF-HT - Hydraulic Hose Fitting - Steel

$103.75
Sold as: Each
Ordered as: C49200-12-25
view spec page

Crossover Part Numbers

Parker Ref.: 1C971-25-12

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 3/4"
1 - Thread Type: C4 Hose End1 - Size: -12 (3/4")2 - Thread Type: Metric Female 24° Cone Swivel HT2 - Size: -36 (36mm)2 - Thread: M36 x 2.0H - Body Hex: 1 3/8
W - Nut Hex: 1 7/8Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
