C69-03-02

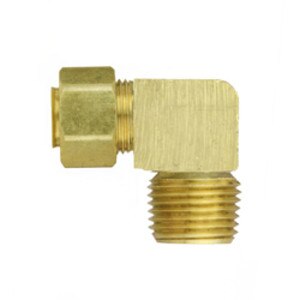

3/16" CA x 1/8" MP 90° - Male Elbow - Captive Compression - Brass
Details
Details
• Captive Compression Male Elbow
• CA x MP 90°
• 1st) 3/16" Captive Compression (3/8 - 24 Thread)
• 2nd) 1/8" Male Pipe NPTF (1/8 - 27 Thread)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 400 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• CA x MP 90°
• 1st) 3/16" Captive Compression (3/8 - 24 Thread)
• 2nd) 1/8" Male Pipe NPTF (1/8 - 27 Thread)
• Solid Machined Brass
• Performs to SAE J512 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 400 PSI
• Temperature Range: –65° to +200° F (–54° to +93° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Parker: 269CA-3-2
Specs
Fluid Product: ConnectionProduct Type: Captive Compression FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: 90° ElbowTube O.D.: 3/16"
1 - Thread Type: Captive Compression1 - Size: -03 (3/16")1 - Thread: 3/8 - 242 - Thread Type: Male Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 27
Working PSI: 400Burst PSI: 1,600Working BAR: 28Burst BAR: 110
