CV-51010-12-65

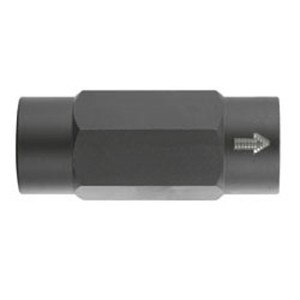

Check Valve - 3/4" Female ORB x 3/4" Female ORB - 65 PSI Crack - Steel

$71.00
Sold as: Each
Ordered as: CV-51010-12-65
view spec page

Specs

Fluid Product: ConnectionProduct Type: ValvesMedia: WOGMaterial: SteelOrientation: Check ValveTube O.D.: 3/4"1 - Thread Type: Female ORB
1 - Size: -12 (3/4")1 - Thread: 1 1/16 - 122 - Thread Type: Female ORB2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 123 - Thread Type: Crack Pressure3 - Thread: 65 PSI
A - Length: 3.54H - Hex: 1.42Working PSI: 4,350Burst PSI: 17,400Working BAR: 300Burst BAR: 1,200
