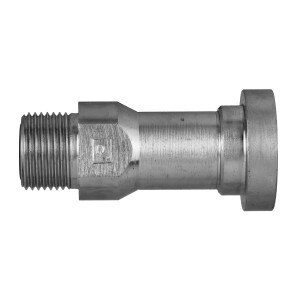

FS-1800-12-16-4
.
Details
Details
• Code 62 - JIC Split Flange Adapter
• MJ x FH62
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 1" Code 62 Flange Head (1-7/8" Dia.)
• Black Buna-N 90 Durometer OFS O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Flange Specifications
• Uses Split Flange Kit # 62SF-KIT-16
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MJ x FH62
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 1" Code 62 Flange Head (1-7/8" Dia.)
• Black Buna-N 90 Durometer OFS O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Flange Specifications
• Uses Split Flange Kit # 62SF-KIT-16
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
