FS-2403-08-08

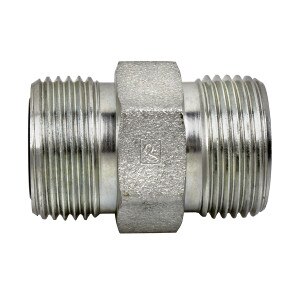

1/2" OFS x 1/2" OFS - OFS Tube Union - Steel
Details
Details
• OFS Tube Union
• OFS x OFS
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520101
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
• OFS x OFS
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520101
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2000T0808SEaton-Weatherhead Ref: 4305x8
Parker Ref: 8 HLO-SSAE Ref: 520101
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/2"
1 - Thread Type: Male OFS1 - Size: -08 (1/2")1 - Thread: 13/16 - 162 - Thread Type: Male OFS2 - Size: -08 (1/2")2 - Thread: 13/16 - 16
C - Hex: 7/8L - Length: 1.39Working PSI: 9,200Burst PSI: 36,800Working BAR: 634Burst BAR: 2,537
