FS-2408-08

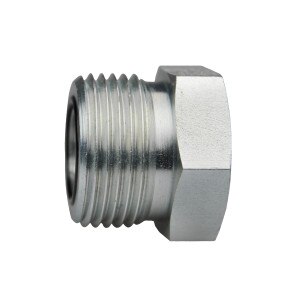

1/2" OFS - OFS Tube Plug - Steel
Details
Details
• OFS Plug
• OFS
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520109
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
• OFS
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520109
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF9767T08-SEaton-Weatherhead Ref: 4229x8
Parker Ref: 8 PNLO-SSAE Ref: 520109
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight

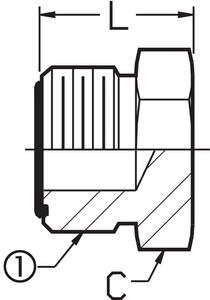

Tube O.D.: 1/2"1 - Thread Type: Male OFS1 - Size: -08 (1/2")1 - Thread: 13/16 - 16C - Hex: 7/8
L - Length: 0.85Working PSI: 9,200Burst PSI: 36,800Working BAR: 634Burst BAR: 2,537
