FS-2501-06-06-4
3/8" OFS x 3/8" MP 90° - OFS Male Elbow - Steel
Details
Details
• OFS Male Elbow
• OFS x MP 90°
• 1st) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 2nd) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520401
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x MP 90°
• 1st) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 2nd) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• Black Buna-N 90 Durometer OFS O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520401
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2032T0606SEaton-Weatherhead Ref: 4405x6x6
Parker Ref: 6-6 CLO-SSAE Ref: 520202
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/8"1 - Thread Type: Male OFS

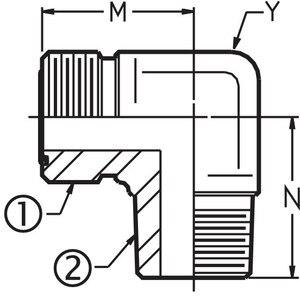

1 - Size: -06 (3/8")1 - Thread: 11/16 - 162 - Thread Type: Male Pipe2 - Size: -06 (3/8")2 - Thread: 3/8 - 18M - Leg Length: 0.98N - Leg Length: 1.22
Y - Flats: 3/4Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
