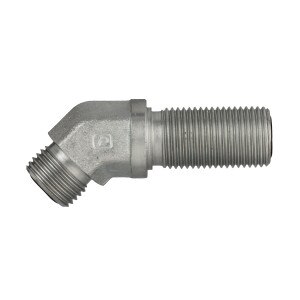

FS-2702-12-12-4
3/4" OFS x 3/4" BH OFS 45° -OFS Bulkhead Union Elbow - Steel
Details
Details
• OFS Bulkhead Union Elbow
• OFS x BH OFS 45°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male Bulkhead OFS (1 3/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520801
• Uses OFS Bulkhead Locknut # FS-306-12
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x BH OFS 45°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 3/4" Male Bulkhead OFS (1 3/16 - 12 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520801
• Uses OFS Bulkhead Locknut # FS-306-12
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2144T1212SEaton-Weatherhead Ref: 4375x12
Parker Ref: 12 WNLO-SSAE Ref: 520801
Specs

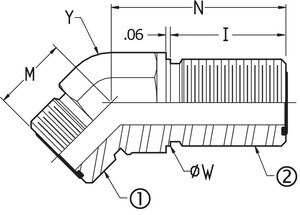

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/4"1 - Thread Type: Male OFS
1 - Size: -12 (3/4")1 - Thread: 1 3/16 - 122 - Thread Type: Male OFS2 - Size: -12 (3/4")2 - Thread: 1 3/16 - 12I - Assembled: 1.64M - Leg Length: 1.02
N - Leg Length: 2.39W - Diameter: 1.19Y - Flats: 1 3/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
