FS-2703-06-06-06-4

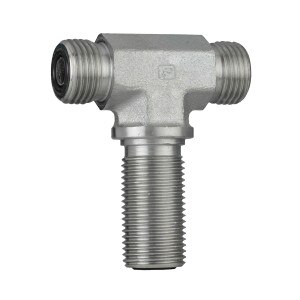

3/8" OFS x 3/8" OFS x 3/8" BH OFS - OFS Bulkhead Branch Tee - Steel
Details
Details
• OFS Bulkhead Branch Tee
• OFS x OFS x BH OFS
• 1st) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 2nd) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 3rd) 3/8" Male Bulkhead OFS (11/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520959
• Uses OFS Bulkhead Locknut # FS-306-06
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
• OFS x OFS x BH OFS
• 1st) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 2nd) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 3rd) 3/8" Male Bulkhead OFS (11/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520959
• Uses OFS Bulkhead Locknut # FS-306-06
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2033T0606SEaton-Weatherhead Ref: 4725x6
Parker Ref: 6 WJLO-SSAE Ref: 520959
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 3/8"1 - Thread Type: Male OFS1 - Size: -06 (3/8")

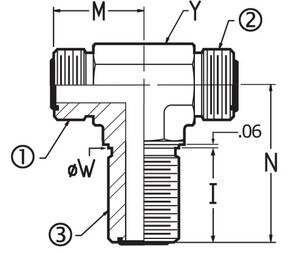

1 - Thread: 11/16 - 162 - Thread Type: Male OFS2 - Size: -06 (3/8")2 - Thread: 11/16 - 163 - Thread Type: Bulkhead Male OFS3 - Size: -06 (3/8")3 - Thread: 11/16 - 16I - Assembled: 1.34
M - Leg Length: 1.02N - Leg Length: 2.05W - Diameter: 0.69Y - Flats: 3/4Working PSI: 9,200Burst PSI: 36,800Working BAR: 634Burst BAR: 2,537
