FS-2704-06-06-06-4
.
Details
Details

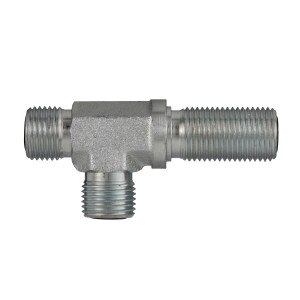

• OFS Bulkhead Run Tee
• OFS x BH OFS x OFS
• 1st) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• 2nd) 3/8" Male Bulkhead OFS (11/16 - 16 Thread)
• 3rd) 3/8" Male O-Ring Face Seal (11/16 - 16 Thread)
• Black Buna-N 90 Durometer OFS O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520958
• Uses OFS Bulkhead Locknut # FS-306-06
• Working Pressure 9,200 PSI (4:1 Burst)
• Burst Pressure 36,800 PSI
