FS-304C-16

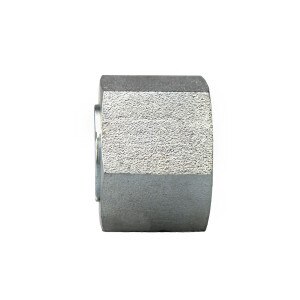

1" FOFX - Female OFS Swivel Cap - Steel
Details
Details
• Female OFS Swivel Cap
• FOFX
• 1st) 1" Female OFS Swivel (1 7/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520112
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• FOFX
• 1st) 1" Female OFS Swivel (1 7/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520112
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF9863-16SEaton-Weatherhead Ref: 4129x16
Parker Ref: 16 FNL-SSAE Ref: 520112
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight

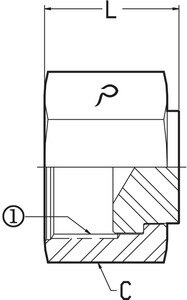

Tube O.D.: 1"1 - Thread Type: Female OFS Swivel1 - Size: -16 (1")1 - Thread: 1 7/16 - 12C - Hex: 1 5/8
L - Length: 1.08Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
