FS-306-08
1/2" FOFS - OFS Bulkhead Locknut - Steel
Details
Details

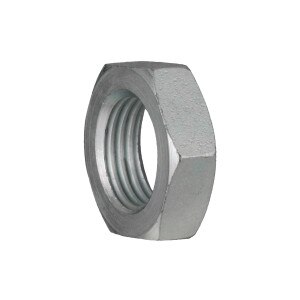

• OFS Bulkhead Locknut
• FOFS (Use with Bulkhead OFS - Size -08)
• 1st) 1/2" Female OFS Swivel (13/16 - 16 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520118
• FOFS (Use with Bulkhead OFS - Size -08)
• 1st) 1/2" Female OFS Swivel (13/16 - 16 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520118
Crossover Part Numbers
Eaton-Aeroquip Ref: FF9768-08SEaton-Weatherhead Ref: 4924x8
Parker Ref: 8 WLNL-SSAE Ref: 520118
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: Steel
Orientation: StraightTube O.D.: 1/2"1 - Thread Type: Female Bulkhead1 - Size: -08 (1/2")

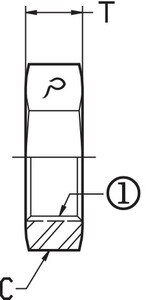

1 - Thread: 13/16 - 16C - Hex: 1 1/8T - Thickness: 0.35
