FS-319-24

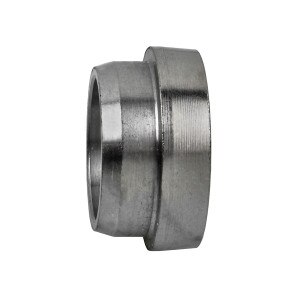

OFS Tube Sleeve - Steel
Details
Details
• OFS Tube Sleeve
• OFS (Use with OFS Tube Nut # FS-318-24)
• 1st) 1-1/2" OFS (2 - 12 Thread)
• Carbon Steel - Unplated
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520115
• OFS (Use with OFS Tube Nut # FS-318-24)
• 1st) 1-1/2" OFS (2 - 12 Thread)
• Carbon Steel - Unplated
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520115
Crossover Part Numbers
Eaton-Aeroquip Ref: FC1229-24SEaton-Weatherhead Ref: 4165x24
Parker Ref: 24 TL-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: Steel
Orientation: StraightTube O.D.: 1 1/2"1 - Size: -24 (1 1/2")1 - Thread: 1 1/2

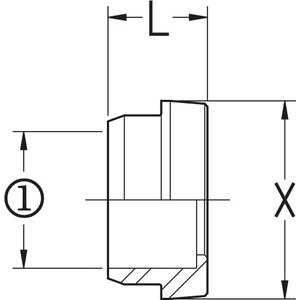

L - Length: 0.61X - Diameter: 1.91
