FS-6402-08-08

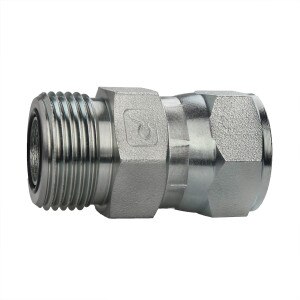

OFS x FJX - Male OFS x Female JIC Swivel
Details
Details
• Male OFS x Female JIC Swivel
• OFS x FJX

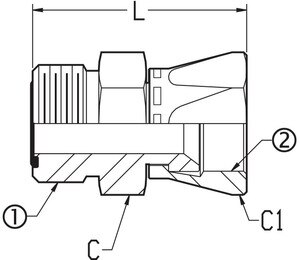

• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Female JIC Swivel (3/4 - 16 Thread)
• Black Buna-N 90 Durometer O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• OFS x FJX
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Female JIC Swivel (3/4 - 16 Thread)
• Black Buna-N 90 Durometer O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
