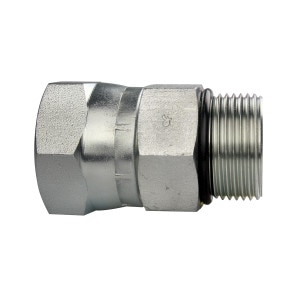

FS-6412-16-16
1" FOFX x 1" MB - Steel
Details
Details
• Female OFS Swivel x Male O-Ring Boss
• FOFX x MB
• 1st) 1" Female OFS Swivel (1 7/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520181
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• FOFX x MB
• 1st) 1" Female OFS Swivel (1 7/16 - 12 Thread)
• 2nd) 1" Male O-Ring Boss (1 5/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Rings
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520181
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2130T1616SEaton-Weatherhead Ref: FF2130T-1616S
Parker Ref: 16 F65OL-SSAE Ref: 520181

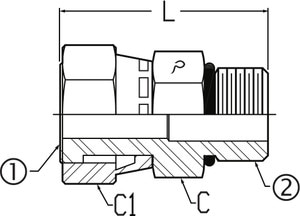

Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1"1 - Thread Type: Female OFS Swivel
1 - Size: -16 (1")1 - Thread: 1 7/16 - 122 - Thread Type: Male ORB2 - Size: -16 (1")2 - Thread: 1 5/16 - 12C - Body Hex: 1 1/2C1 - Nut Hex: 1 5/8
L - Length: 2.66Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
