FS-7403-08-08

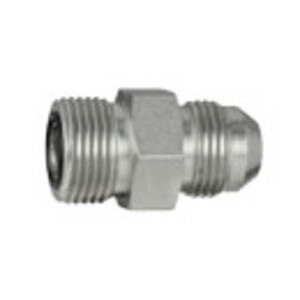

1/2" OFS x 1/2" MJ - OFS x JIC Adapter - Steel
Details
Details
• Male OFS x Male JIC
• OFS x MJ
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x MJ
• 1st) 1/2" Male O-Ring Face Seal (13/16 - 16 Thread)
• 2nd) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2313T0808S
Parker Ref: 8 XHLO-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/2"

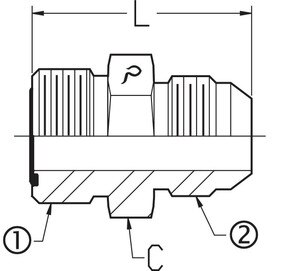

1 - Thread Type: Male OFS1 - Size: -08 (1/2")1 - Thread: 13/16 - 162 - Thread Type: Male JIC2 - Size: -08 (1/2")2 - Thread: 3/4 - 16
C - Hex: 7/8L - Length: 1.55Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
