FS-7504-04-04

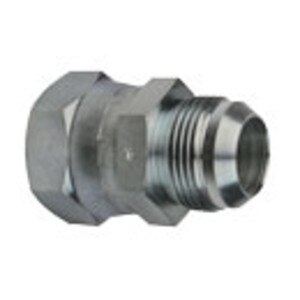

FOFX x MJ - Female OFS Swivel x Male JIC
Details
Details
• Female OFS Swivel x Male JIC
• FOFX x MJ
• 1st) 1/4" Female OFS Swivel (9/16 - 18 Thread)
• 2nd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 7,500 PSI (4:1 Burst)
• Burst Pressure 30,000 PSI
• FOFX x MJ
• 1st) 1/4" Female OFS Swivel (9/16 - 18 Thread)
• 2nd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 Rules - Dimensions NOT Specified
• Working Pressure 7,500 PSI (4:1 Burst)
• Burst Pressure 30,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF2209T0404S
Specs

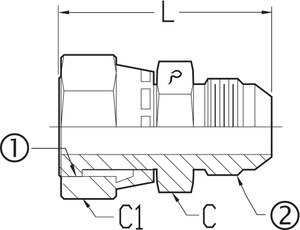

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/4"1 - Thread Type: Female OFS Swivel
1 - Size: -04 (1/4")1 - Thread: 9/16 - 182 - Thread Type: Male JIC2 - Size: -04 (1/4")2 - Thread: 7/16 - 20C - Body Hex: 5/8C1 - Nut Hex: 11/16
L - Length: 1.49Working PSI: 7,500Burst PSI: 30,000Working BAR: 517Burst BAR: 2,068
