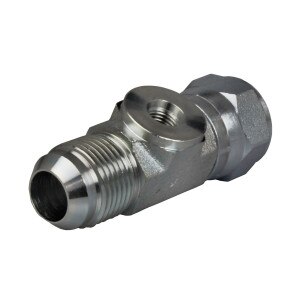

GP-6504-08-08-4
1/2" MJ x 1/2" FJX x 1/4" ORB Port - GagePort - Steel
Details
Details
• GagePort Series - Male JIC x Female JIC Swivel
• MJ x FJX x FB Port
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Female JIC Swivel (3/4 - 16 Thread)
• 3rd) 1/4" Female O-Ring Boss Port (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MJ x FJX x FB Port
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Female JIC Swivel (3/4 - 16 Thread)
• 3rd) 1/4" Female O-Ring Boss Port (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Specs
Fluid Product: ConnectionProduct Type: TestManMedia: HydraulicMaterial: SteelOrientation: GagePortTube O.D.: 1/2"1 - Thread Type: Male JIC
1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Thread Type: Female JIC Swivel2 - Size: -08 (1/2")2 - Thread: 3/4 - 163 - Thread Type: ORB Port3 - Size: -4 (1/4")
3 - Thread: 7/16 - 20C - Nut Hex: 7/8L - Length: 2.62Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
