K20600-08-10

1/2" Braided Crimp x 5/8" FJX - Hydraulic Hose Fitting - Steel

$8.90
Sold as: Each
Ordered as: K20600-08-10
view spec page

Crossover Part Numbers

Parker Ref.: 10643-10-8

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/2"1 - Thread Type: K2 Hose End

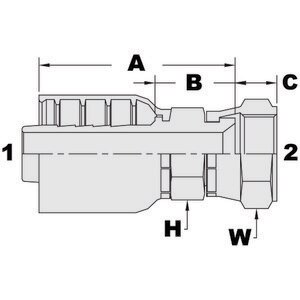

1 - Size: -08 (1/2")2 - Thread Type: Female JIC Swivel2 - Size: -10 (5/8")2 - Thread: 7/8 - 14A - Length: 2.17B - Cut-Off Allowance: 0.95C - Optional Length: 0.50
H - Body Hex: 7/8W - Nut Hex: 1”Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
