K20645-06-06

3/8" Braided Crimp x 3/8" FJX 45° - Hydraulic Hose Fitting - Steel

$11.45
Sold as: Each
Ordered as: K20645-06-06
view spec page

Crossover Part Numbers

Parker Ref.: 13743-6-6 / 1L743-6-6

Specs

Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/8"1 - Thread Type: K2 Hose End

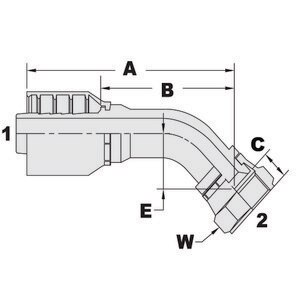

1 - Size: -06 (3/8")2 - Thread Type: Female JIC Swivel 45°2 - Size: -06 (3/8")2 - Thread: 9/16 - 18A - Length: 2.68B - Cut-Off Allowance: 1.62C - Optional Length: 0.37
E - Drop Length: 0.63W - Nut Hex: 11/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
